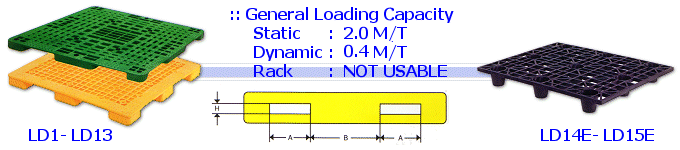

Pallets for
Light Duty Use
ITEM NO.
DIMENSION (mm)
DIMENSION (in)
LONG SIDE
SHORT SIDE
H
WEIGHT (kg)
WEIGHT (lbs)
REMARKS
A
B
A
B
LD1
1000 x 800 x 80
39.40 x 31.52 x 3.15
220
330
170
180
45
8.5
18.74
NON-REV/4WAY
LD2
1050 x 1050 x 80
41.37 x 41.37 x 3.15
245
330
225
330
45
11.5
25.36
NON-REV/4WAY
LD3
1100 x 1100 x 70
43.34 x 43.34 x 2.76
245
305
245
305
40
10.5
23.15
NON-REV/4WAY
LD4
1100 x 1100 x 80
43.34 x 43.34 x 3.15
260
200
260
200
45
10.5
23.15
NON-REV/4WAY
LD5
1100 x 1100 x 80
43.34 x 43.34 x 3.15
245
330
245
330
45
9
19.85
NON-REV/4WAY
LD6
1200 x 1000 x 80
47.28 x 39.40 x 3.15
245
330
245
330
45
9
19.85
NON-REV/4WAY
LD7
1200 x 1200 x 80
47.28 x 47.28 x 3.15
276
328
276
328
45
12
26.46
NON-REV/4WAY
LD8
1100 x 1100 x80
43.34 x 43.34 x 3.15
245
330
245
330
45
8.5
18.74
NON-REV/4WAY
LD9
1300 x 1100 x 80
51.22 x 43.34 x 3.15
285
400
255
350
45
12
26.46
NON-REV/4WAY
LD10
1350 x 1100 x 80
53.19 x 43.34 x 3.15
245
480
245
330
45
16
35.28
NON-REV/4WAY
LD11
1400 x 1100 x 80
55.16 x 43.34 x 3.15
300
400
250
300
45
17
37.49
NON-REV/4WAY
LD12
1300 x 1300 x 80
51.22 x 51.22 x 3.15
260
380
260
380
45
17.5
38.59
NON-REV/4WAY
LD13
1500 x 1500 x 80
59.10 x 59.10 x 3.15
300
480
300
480
45
16.5
36.38
NON-REV/4WAY
LD14E
1200 x 1000 x 140
47.28 x 47.28 x 5.91
308
134
284
134
110
8
17.64
NON-REV/4WAY
LD15E
1305 x 1135 x 140
51.42 x 44.72 x 5.91
308
134
284
134
110
9
19.85
NON-REV/4WAY
